AXIAL TYPE LAMPS

FESTOON LAMPS T8.0mm (T2 1/2) (BASE S7/8)

DESIGN LUMINOUS FLUX AVG LIFETIME FILAMENT
SHAPE
TOSHIBA
LAMP
NO.
REF.NO. REMARKS
VOLTAGE CURRENT AC DC
V mA M.S.C.P. lm hrs. hrs.
13.0 150 1.2 15 2,000 1,000 C-8 A8110 12V2W
13.0 260 2.2 28 800 400 C-8 A8374 12V3.4W KRYPTON
14.0 240 2.0 25 1,600 800 C-8 A8373 12V3.4W
13.0 380 3.0 38 2,000 1,000 C-8 A8121 12V5W ARGON
28.0 180 3.0 38 2,000 1,000 CC-8 A8170 24V5W




To page top

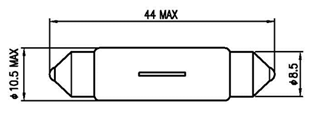

FESTOON LAMPS T10.0mm (T3 1/4) (BASE S8.5/8.5)

REFER TO
FIGURE
DESIGN LUMINOUS FLUX AVG LIFETIME FILAMENT
SHAPE
TOSHIBA
LAMP
NO.
REF.NO. REMARKS
VOLTAGE CURRENT AC DC
V mA M.S.C.P. lm hrs. hrs.
13.0 380 3.0 38 2,000 1,000 C-8 A8720 12V5W ARGON
14.0 450 5.0 63 2,000 1,000 C-8 A8728 12V6W KRYPTON
13.0 620 7.6 95   350
(at14.0V)
C-8 A8723 12V8W ARGON
13.0 620 8.8 110   350
(at14.0V)
C-8 A8724 12V8W KRYPTON
13.0 770 9.6 120   350
(at14.0V)
C-8 A8722 12V10W ARGON
28.0 370 6.4 80 2,000 1,000 CC-8 A8772 24V10W ARGON
13.0 380 3.0 38 2,000 1,000 C-8 A8822 12V5W ARGON
13.0 620 7.6 95 800 400 C-8 A8820 12V8W ARGON
13.0 770 9.6 120 1,000 500 C-8 A8821 12V10W ARGON
28.0 370 6.4 80 2,000 1,000 CC-8 A8871 24V10W ARGON
13.0 770 9.6 120 1,000 500 C-8 HT9961 12V10W ARGON
13.5 740 8.8 110 1,000 500 C-8   12V10W ARGON
28.0 180 4.0 50 6,000 3,000 CC-8   24V5W XENON
28.0 360 8.0 100 2,000 1,000 CC-8   24V10W KRYPTON



To page top

FESTOON LAMPS T15.0mm (T5) (BASE SV8.5/8)

DESIGN LUMINOUS FLUX AVG LIFETIME FILAMENT
SHAPE
TOSHIBA
LAMP
NO.
REF.NO. REMARKS
VOLTAGE CURRENT AC DC
V mA M.S.C.P. lm hrs. hrs.
13.0 1153 18.0 226 200 100 C-8   12V15W ARGON
28.0 710 21.1 265 1,000 500 CC-8   24V20W ARGON







To page top

FESTOON LAMPS T10.0mm (T3 1/4) (BASE SV8.5/8) ECE APPROVED

DESIGN LUMINOUS FLUX LIFETIME FILAMENT
SHAPE
TOSHIBA
LAMP
NO.
REF.NO. REMARKS
VOLTAGE CURRENT B3 Tc
V mA M.S.C.P. lm hrs. hrs.
13.5 370 3.6 45 350 750 C-8   C5W VACUUM
13.5 370 3.6 45 500 1,500 C-8   C5W ARGON







To page top

FLOW LAMPS T10.0mm (T3 1/4) Rigid Loop

DESIGN LUMINOUS FLUX AVG LIFETIME FILAMENT
SHAPE
TOSHIBA
LAMP
NO.
REF.NO. REMARKS
VOLTAGE CURRENT AC DC
V mA M.S.C.P. lm hrs. hrs.
12.8 780 9.0 113 2,000 1,000 C-8 567 12.8V10W ARGON
12.8 970 11.9 150 2,000 1,000 C-8 561 12.8V970mA ARGON
13.5 740 6.0 75 10,000 5,000 C-8 562 13.5V10W ARGON
14.0 440 2.0 25 2,000 2,000 C-8 564 14V440mA ARGON





To page top

FLOW LAMPS T10.0mm (T3 1/4) (BASE SF9.2/8.7M)

DESIGN LUMINOUS FLUX AVG LIFETIME FILAMENT
SHAPE
TOSHIBA
LAMP
NO.
REF.NO. REMARKS
VOLTAGE CURRENT AC DC
V mA M.S.C.P. lm hrs. hrs.
12.8 780 9.0 113 2,000 1,000 C-8 578 12.8V10W ARGON
12.8 970 11.9 150 2,000 1,000 C-8 211-2 12.8V970mA ARGON
13.5 740 6.0 75 10,000 5,000 C-8 212-2 13.5V10W ARGON
13.5 520 4.0 50 4,000 2,000 C-8 214-2 13.5V7W ARGON





To page top

FLOW LAMPS (COLORED) T10.0mm (T3 1/4) (BASE SF9.2/8.7M)
BLUE COATED COLOR

DESIGN LUMINOUS FLUX COLOR
TEMP.
AVG LIFE FILAMENT
SHAPE
TOSHIBA
LAMP
NO.
REF.NO. REMARKS
VOLTAGE CURRENT DC
V mA M.S.C.P. lm K hrs.
12.8 780 6.0 75 3,400 1,000 C-8 578 12.8V10W XENON
12.8 970 7.2 90 3,400 1,000 C-8 211-2 12.8V970mA XENON







To page top

AXIAL TYPE LAMPS T6.2mm (T2) (BASE SF6/7)

DESIGN LUMINOUS FLUXAVG LIFETIME FILAMENT
SHAPE
TOSHIBA
LAMP
NO.
REF.NO. REMARKS
VOLTAGE CURRENT AC DC
V mA M.S.C.P. lm hrs. hrs.
12.0 150 0.6 7.5 10,000 5,000 C-8 A6221 12V150mA
12.0 150 0.7 9.0 5,000 2,500 C-8   12V150mA
12.0 167 1.0 12.6 3,000 1,500 C-8   12V2W
12.0 250 1.0 12.6 5,000 2,500 C-8   12V3W
14.0 100 1.0 12.6 2,000 1,000 C-8 A6224 14V100mA
14.0 150 1.5 18.8 2,000 1,000 C-8 A6226 14V150mA



To page top
