PULSAR Fast Medium Wave Infrared Emitters

TOSHIBA PULSAR emitters, HYBRID infrared, are the fast response short & medium wave infrared heater and can be switched on and off within few seconds, converting more than 85% of input power into infrared heat to meet the voice of professional users.
The HYBRID infrared is particularly matched to drying process for surface and/or thin materials in plastics, textile, automotive, printing industry and numerous industrial processes.

TOSHIBA PULSAR emitters are state of the art and comprise finely coiled tungsten filament surrounded by a quartz glass and a kind of halogen gas filled emitter. Halogen cycle ensures constant infrared efficiency all the lifetime with preventing the quartz glass from blackening.
TOSHIBA PULSAR emitters, give more than 85% of full power into infrared heat as it is a halogen emitter, whilst 60 to 70% by a classical quartz heater and less than 50% by a metal-sheathed heater.

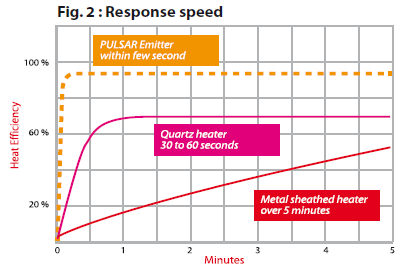

PULSAR gives also instant heat and can switched on within few seconds –see Fig.2

Benefits & Features

  • Emitting HYBRID medium infrared waveband from short to medium wave at 1.6μm peak wavelength – see Fig.1
  • HYBRID color temperature around 1800 Kelvin (around 1500°C) – see Fig.1
  • High efficiency: more than 85% of input power into infrared heat.
  • High speed within few seconds
  • High power density up to 71W/cm
  • Long life 5000h on average
